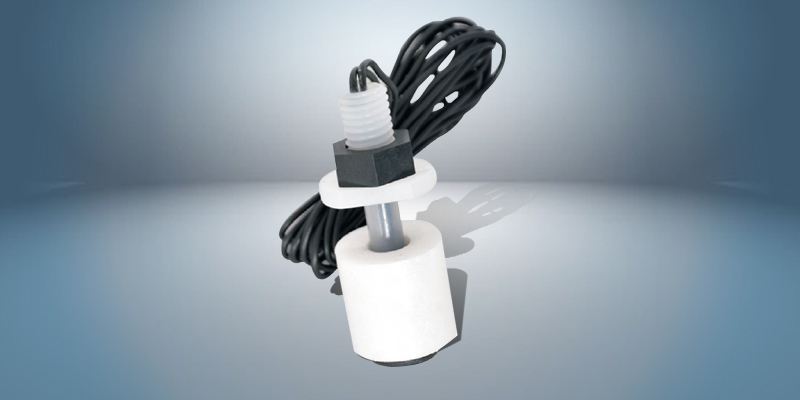

PP Miniature Float switch is suitable for single level sensing. It Consists of a Reed switch housed inside the PP housing & a permanent Magnet inside the float assembly. The float moving with the liquid level makes (NC) & breaks (NO) the reed switch contact. It is used for sensing Low, High or Point level in tanks .the mounting is through a M12 male thread.
Housing | PP |
Float | PP (upto 70oC) |
Mounting | M12 Male thread with a nut 70oC |
Maximum Temperature | 70oC |
Maximum Pressure | 2KG/cm2 |
Maximum Switching Voltage | 230VAC / 24V DC |
Maximum Switching Current | 0.7A / 0.5A |
