Oil Level Indicator


Oil Level Indicator

Oil Level Indicator is designed to indicate the Oil level inside the tank with a visual indicator above the tank. Oil Level Indicator is very useful in visually monitoring the Oil level from a distance. Reed Proximity sensor is fitted to Oil Level Indicator for remote feedback of high, low or multiple levels of tank .The Reed Proximity Sensors are easily adjustable at site & have Latching technology.

Highlights :

  • Designed to indicate oil level inside the tank
  • Precision design
  • Longer service life

Standard Construction

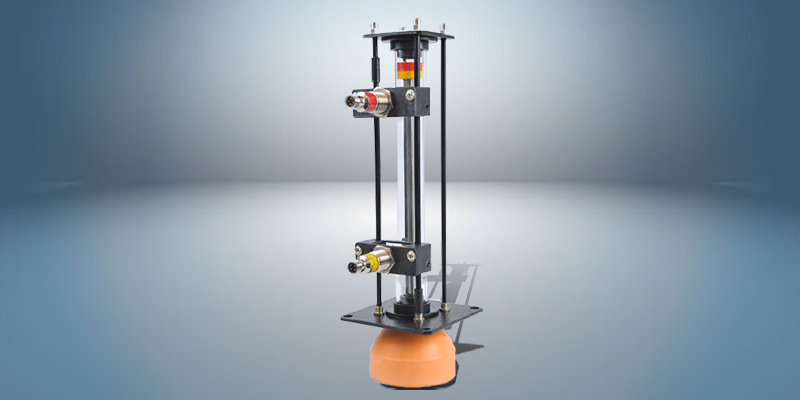

Standard Oil Level Indicator is provided with transparent acrylic tube mounted on a MS flange, supported by four SS tie rods. Reed proximity sensors are mounted on two tied rods using mounting brackets. Float is made up of Solid Nylon Foam of very low density. The float is connected to a piston rod & the other end of which fitted with a circular bicolour disc. The Bicolour disc is assembled with a permanent magnet. Bicolour magnetic assembly performs a dual role of oil level indication & actuation of Reed proximity sensor

Application :

Coolant, Oil, Diesel & Hydraulic oil applications

Technical Data

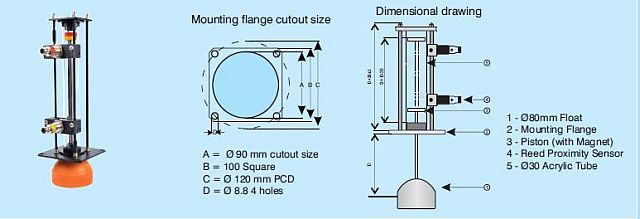

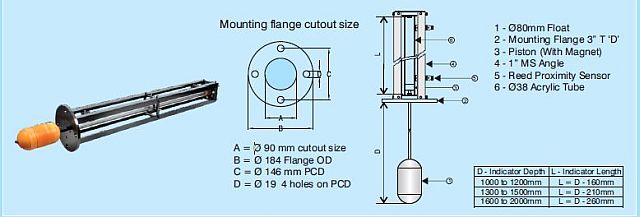

Indicator length : 100mm to 900 mm
Max. Temperature : 80oC
Max. Pressure : Atmospheric
Mounting flange : 100 Sq. Ms
Float : 80mm, Solid Nylon Foam
Indicationg tube : 30, Acrylic
Filpro sensors Filpro sensors
