Float Level Transmitter - Atex

Float Level Transmitters - Atex are ideal for continuous Level monitoring in Water, Diesel, Chemical and Oils for accurate level Measurement. The Output is not affected by liquid type, temperature, Pressure and other physical parameters. The Transmitter is factory calibrated and is ready to use.

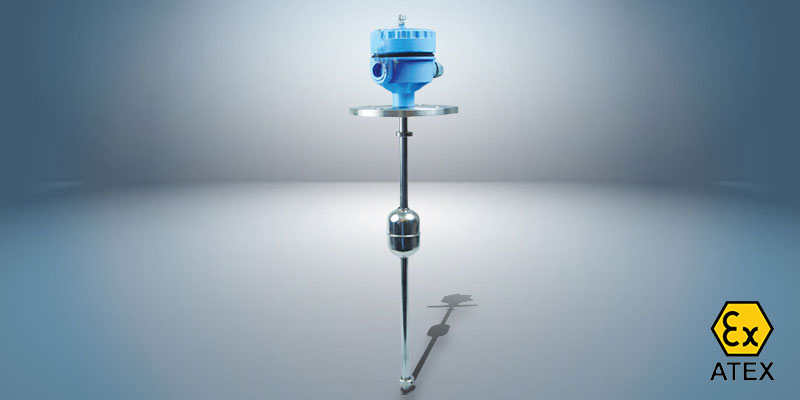

Float Level Transmitter - Atex consists of non magnetic sealed stem containing series of reed switches and resistor, Float carrying magnet, Mounting adaptor (or flange) and enclosure containing electronics.

Consider our Float Level Transmitters - Atex for all your continuous liquidlevel monitoring needs like Water, Diesel, Lube oils, Fuels, Chemicals and Petrochemical liquids.

Here are just few areas where transmitter can be used.

  • Pharmaceuticals
  • Refineries
  • Petrochemicals
  • Chemicals
  • Oil and Gas

Technical Data

Overall Length 300 mm to 5000mm
Input 16V DC to 30V DC
Output 4-20mA / 0-10V DC
Resolution 5mm / 10mm
Enclosure Cast Aluminium, IP66
Wetted parts SS 304 / SS 316 / SS 316L / Titanium
Mounting Flange / Thread / Tri clover
Accracy +/- 0.5% FS
Approval EX II 1G Ex ia IIB T4 Ga
EX II 2G Ex db IIB T4 Gb
