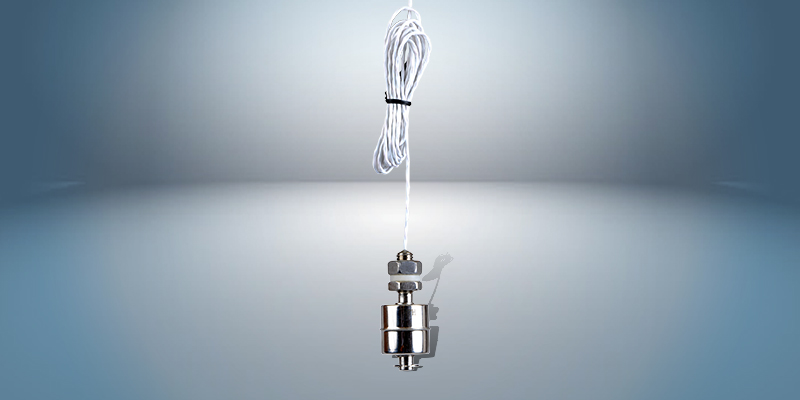

Filpro sensors Miniature Level Switch

Miniature Level Switch

Miniature Level Switch is a compact construction, suitable for mounting vertically. Miniature Level Switch consists of a Reed Switch housed inside the guide tube & a permanent magnet inside the Float assembly. The Float moving with the liquid level makes (NC) & breaks (NO) the Reed Switch contact. Miniature Level Switch is used for sensing low, high or both high & low level in tanks.

Applications :
  • Water
  • Diesel
  • Hydraulic Oil
  • Edible Oil
  • Chemicals & Pharma

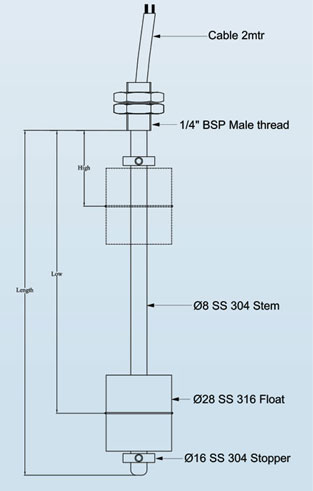

Technical Specifications

Probe Length Up to 1000mm
Float PP, SS 316
Switching rating 24 V DC, 230VAC
No. of Switch Levels 1 to 2
Mounting Flange, Threaded
Material of construction SS 304, SS 316
Maximum Temperature 125oC
Maximum Pressure 10kg/cm2

Miniature Level Switch
