Adjustable Level Switch

We offer Adjustable type Level Switch for use in Sumps, Over Head Tanks and Storage Tanks. The Adjustable Level Switches are easy to install and levels are freely adjustable at site.

Construction

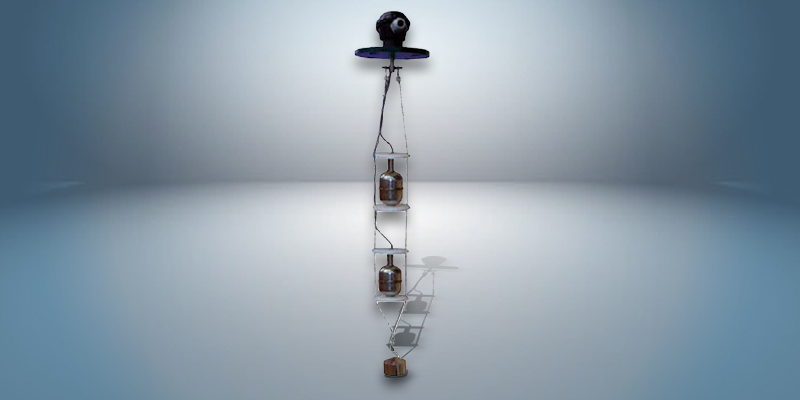

Adjustable Level Switch consists of separate Level Switch assembly for each level like Low, High, Middle or Multi-level. These individual level switch assy, are suspended through SS Rope & are freely adjustable along the SS rope. The level switch assy, are provided with adjustable disc, which can slide through the SS rope & are secured to SS rope with stopper or cable tie at required levels. The cables are terminated inside a weatherproof enclosure. The adjustable Level Switch is provided with mounting flange of standard size.

Specifications

Electrical Rating: Max. Voltage: 24V AC/DC
Max. current: 0.5A
Mechanical:
Max. temperature : 80C
Max. pressure: Atmospheric
Wetted parts MOC:
Float: SS 316/ Nylon Foam
Rope: SS316
Dead weight: PP
Adjustable Disc: PP
Cable: PVC
